d1-total streamer/DAC

The d1-total is a DAC/streamer which represents the maximum that Totaldac can do in a single box, it is composed of:
-d1-triunity DAC with volume control
-streaming board (latest version developed for the d1-streamer-live)
-40 femtoseconds oscillators + high performance digital buffers + high performance power supply decoupling (all of them developed for the d1-streamer-live)
-microfilter USB loop (developed for the d1-streamer-live)
-live-clocking option
-live-power option
-damping feet
-DSD option
Totaldac d1-total front

Specifications:
-192KHz asynchronous Xmos USB, 192KHz coax RCA, 192KHz AES-EBU, 96KHz optical, selected from a remote control.
-RJ45 ethernet input.
-44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz and 192KHz, 16 to 24 bit formats supported.
-DSD (DoP standard) supported on coax, AES-EBU and USB inputs.
-embedded custom clock with anti-jitter FIFO memory.
-3.5Vrms max RCA, 7Vrms max XLR analog output.
-volume control, adjusted by a remote control and an OLED display, works for all inputs.
-non-oversampling DAC compensation filter activated or disactivated by remote control.
-display switched off by remote control.
-R2R DAC technology using 300 pieces of 0.01% VAR Bulk Metal® Foil resistors Vishay Foil Resistors.
-class A discrete transistor output stage.
-external power supply to minimize the noise on the embedded preamp.
-aluminium and PMMA enclosure with massive pure copper antivibration plate.
-power consumption 14.2W @44.1KHz, 16.5W @192KHz.
-DAC dimensions: height 110mm, width 360mm, depth 290mm.
-power supply dimensions: height 67mm, width 122mm, depth 180mm.
-weight: 7kg.

compatible applications:
RoonReady (RAAT certified by Roon)
Jplay certified (ask Totaldac to get a free 2 month trial)
plays with Audirvana (ask Totaldac to get a free 3 month trial)
UPNP/DLNA/openhome, for example for Jplay IOS app, Minimserver, Audirvana, Mconnect Player HD, BubbleUPNP, Spoticast
Airplay compatible, to listen to the sound of your Ipad/Iphone or from Itunes under Windows
Squeezelite, compatible with Roon
NAA for HQplayer
Streaming such as Qobuz, Tidal or Spotify via Roon, Jplay, Mconnect, Audirvana or Airplay
Try Qobuz, with one free month: https://www.qobuz.com/store-router/discover

Available options:
-silver massive aluminium front panel.
-115V power option.
-BNC coaxial digital input instead of RCA.
-2, 3, 4 way active crossover or more, by associating several DAC boxes.
-Bass boost.
-full cable line by Totaldac.

prices

Rear view:

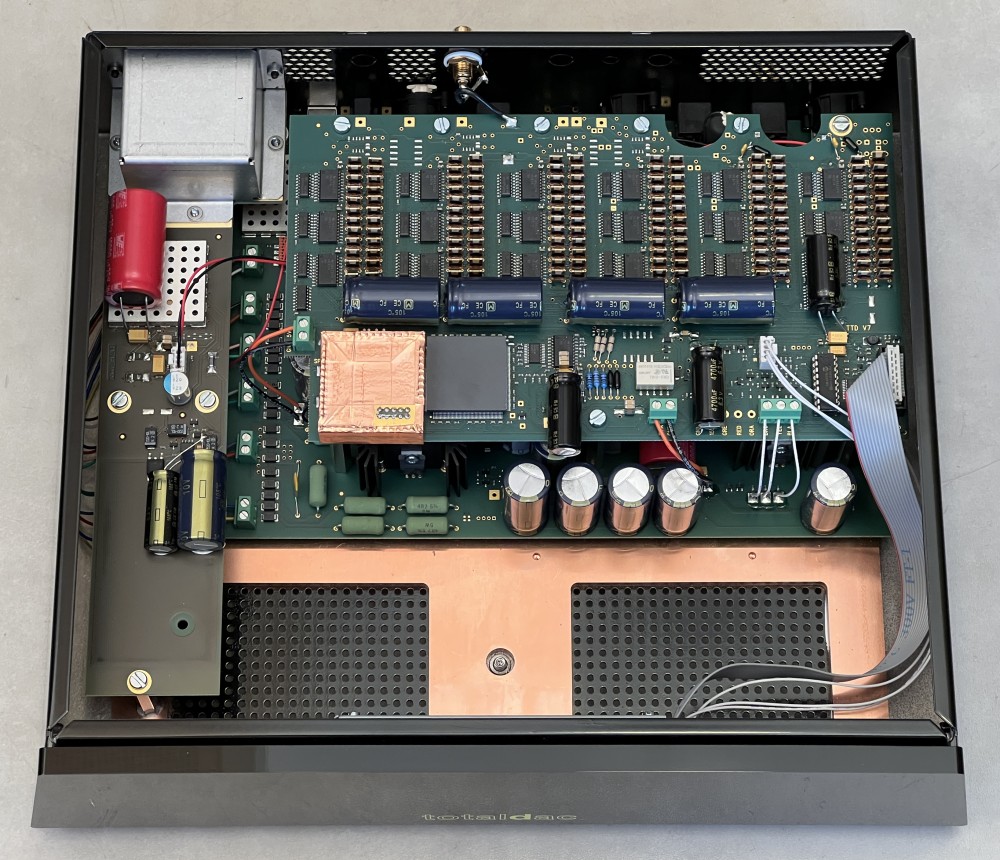

Inside view:

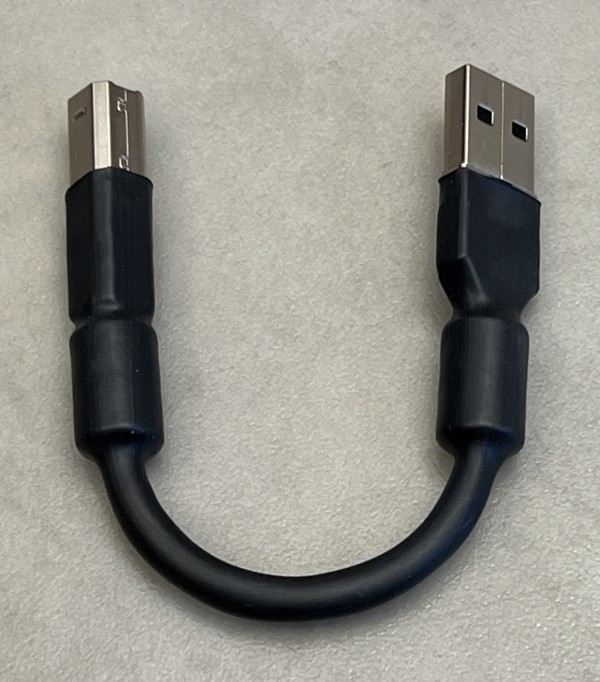

The new USB microfilter:

Silver option:

The remote control:

User's guide

You can download the user's guide here:
