d1-triunity DAC Totaldac roonready upgrade to d1-triunity

The d1-triunity benefits from the new Totaldac "unity" DAC architecture, with about 290 components upgraded or added to the electronic boards.
The d1-triunity is a d1-unity but with 3 R2R ladders per channel instead of one, giving a lower noise and the real scale of each instrument.
The "unity" architecture allows a better clock distribution, a lower jitter, a lower R2R power supply rail impedance and a lower noise in the digital section.
The R2R ladder resistors are still the famous naked Vishay foil.
The output stage is also fully new, in term of components and in term of schematics, and using discrete components exclusively.
This new output stage produced a 3.5V unbalanced signal and a 7V balanced signal with low impedance for the best versatility, to be connected to all preamps, all integrated amps and also directly to all power amps.
The "unity" architecture gives more presence, more contrast between the timbre of each instrument, more contrast between the size of each instrument, more clarity at the same time as more body and more dynamic, the sound is more realistic and natural giving you more pleasure and no fatigue.
This sound has been adjusted with an analog master tape player as direct comparison and with digital recordings made by Totaldac. Listening tests where made in the new Totaldac auditorium.
The new "unity" architecture still allows all Totaldac d1-x DACs to be upgraded to this new architecture.

"UPPER ECHELON price" Matel Isak, Mono&Stereo
"How the d1-triunity manages to transmit so much detail and nuance without ever, ever sounding etched or bright is a true master stroke by Brient.
...a level of tonal precision which is unprecedented in my experience with digital playback.
The Totaldac d1-triunity converter is the new DAC reference at SoundStage! Australia HQ."
Edgar Kramer, SoundStage! Australia

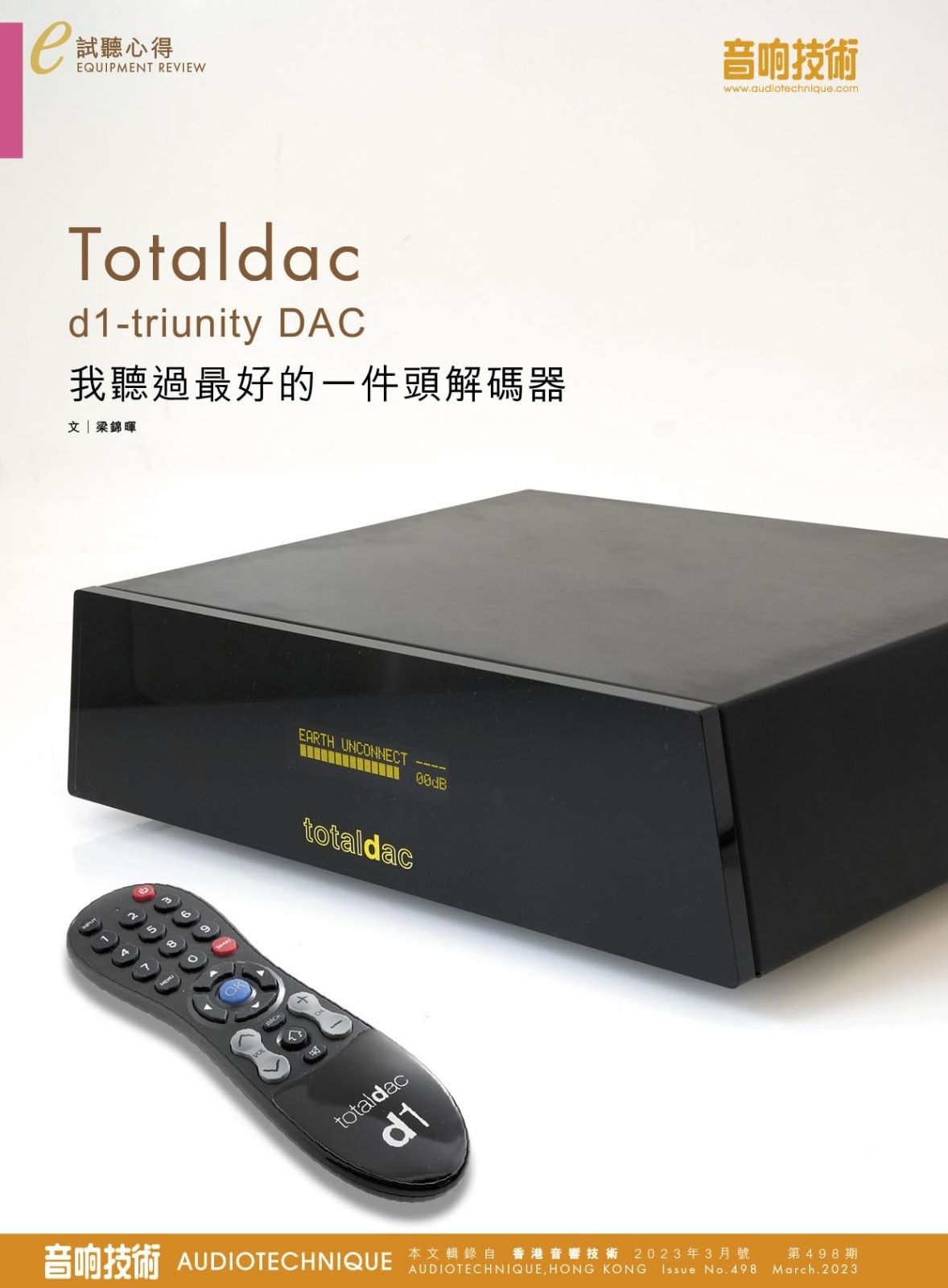

"It is the BEST one box DAC I ever heard, NOT one of the best but the BEST" Paul LEUNG, AudioTechnique, Issue 498 March 2023
Totaldac d1-triunity front

-192KHz asynchronous Xmos USB, 192KHz coax RCA, 192KHz AES-EBU, 96KHz optical, selected from a remote control.
-44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz and 192KHz, 16 to 24 bit formats supported.
-as an option, DSD (DoP standard) supported on coax, AES-EBU and USB inputs.
-embedded custom clock with anti-jitter FIFO memory.
-3.5Vrms max RCA, 7Vrms max XLR analog output.
-volume control, adjusted by a remote control and an OLED display, works for all inputs.
-phase polarity selected by remote control.
-non-oversampling DAC compensation filter activated or disactivated by remote control.
-display switched off by remote control.
-R2R DAC technology using 300 pieces of 0.01% VAR Bulk Metal® Foil resistors Vishay Foil Resistors.
-class A discrete transistor output stage.
-external power supply to minimize the noise on the embedded preamp.
-aluminium and PMMA enclosure with massive pure copper antivibration plate.
-power consumption 14.2W @44.1KHz, 16.5W @192KHz.
-DAC dimensions: height 110mm, width 360mm, depth 290mm.
-power supply dimensions: height 65mm, width 122mm, depth 180mm.
-weight: 7kg.

Available options:
-damping feet.
-live-power grade power supply, highly recommended
-DSD (DoP) option.
-silver massive aluminium front panel.
-115V power option.
-BNC coaxial digital input instead of RCA.
-2, 3, 4 way active crossover or more, by associating several DAC boxes.
-Bass boost.


Damping feet option:

Custom damping feet are available as an option for a nice sound quality improvement.
The optional damping feet are 15.5mm high whereas the stock feet are 13.5mm high, so the product gets 2mm higher.

Totaldac damping feet

Silver option:

Totaldac d1-triunity silver

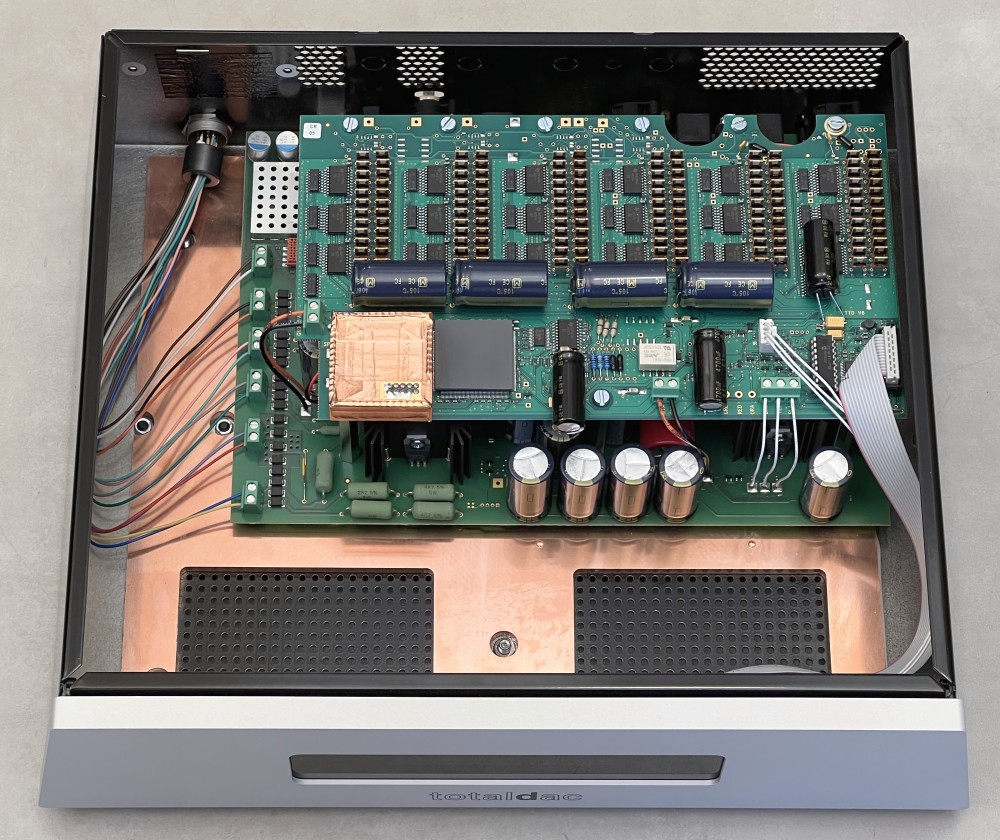

Inside (with silver option):

Totaldac d1-triunity inside photo

The remote control:

Totaldac d1 remote control
