Amp-1-sublime, stereo or monobloc amplifier

The Amp-1-sublime is the Totaldac reference amplifier, using solid state components exlusively.
Its design started with Magico M6 speakers on hand, then continued with Totaldac d100%wood speakers as well as with a large 105dB/1W/1m efficiency horn system, and with the d1-sublime DAC or an analog master tape player as source.
The Magico being moderate efficiency and difficult impedance, the large horn system being 105dB/1W/1m efficiency with easy 8ohm impedance, an amplifier giving the best sound in these two opposite environnements will work as great with all high-end speakers.

The triode stage used in the previous generation of Amp-1 is now upgraded by an innovating transistor gain stage, using very low component count (all discrete) and no global feedback.
A very high voltage (240Vdc) is used to give the maximum dynamic to the signal and its power supply is based on a discrete regulator as well.
The circuit uses 0.01% VAR Bulk Metal® Foil resistors from Vishay in the critical voltage gain stage.
The gain stage is then followed by an equally innovating and powerful transistor buffer, using no global feedback as well.
This design combines no global feedback, low noise, high gain (33dB), high bandwidth (400KHz) and high current (driving 1ohm) thanks to its 2500VA/25kg live-power transformer.
These characteristics produce a transparent, fast, live and natural sound without harshness and at the same time with punch and weight in bass.

The Amp-1-sublime amplifier is available as stereo amplifier with RCA inputs or as fully balanced monobloc with XLR input.

stereo version:
totaldac Amp-1-sublime amplifier

monobloc version:
totaldac Amp-1-sublime amplifier

specifications of the stereo version:
stereo power amplifier
zero global feedback
fully discrete design
fully solid state
using 0.01% VAR Bulk Metal® Foil resistors from Vishay in the critical voltage gain stage
class AB with medium level of class A for moderate power consumption and for moderate heat in the room
2500VA, 26kg LIVE-POWER transformer with separate windings for left and right channel
separate left/right power supply rectifications and capacitor banks for an almost dual mono configuration (like two monoblocs in one chassis)
designed on Magico M6, on a 105dB large coax horn system and on Totaldac speakers
RCA inputs
largest Mundorf binding posts
2x150W under 8ohm
2x300W under 4ohm
2x500W under 2ohm
stable under 1ohm
33dB gain
0.77V sensitivity
input impedance: 47Kohm
frequency response at -3dB: 0.06Hz to 400KHz
very low noise tested in real life on very high efficiency speakers (no hum on 105dB bass horns)
input offset tolerance without lowering the signal quality: +/-100mV
power consumption when music level is moderate: 175Watt @ 230V
230mm height
483mm width
453mm depth including connectors
54kg weight

Monobloc version:
-XLR input
-fully balanced from the XLR input to the speaker output
-an Amp-1-sublime monobloc can also be used as a stereo amplifier with RCA inputs
-600W under 8ohm
-1000W under 4ohm

prices

Available options:
-120V or 100V power (standard is 230V)
-damping feet

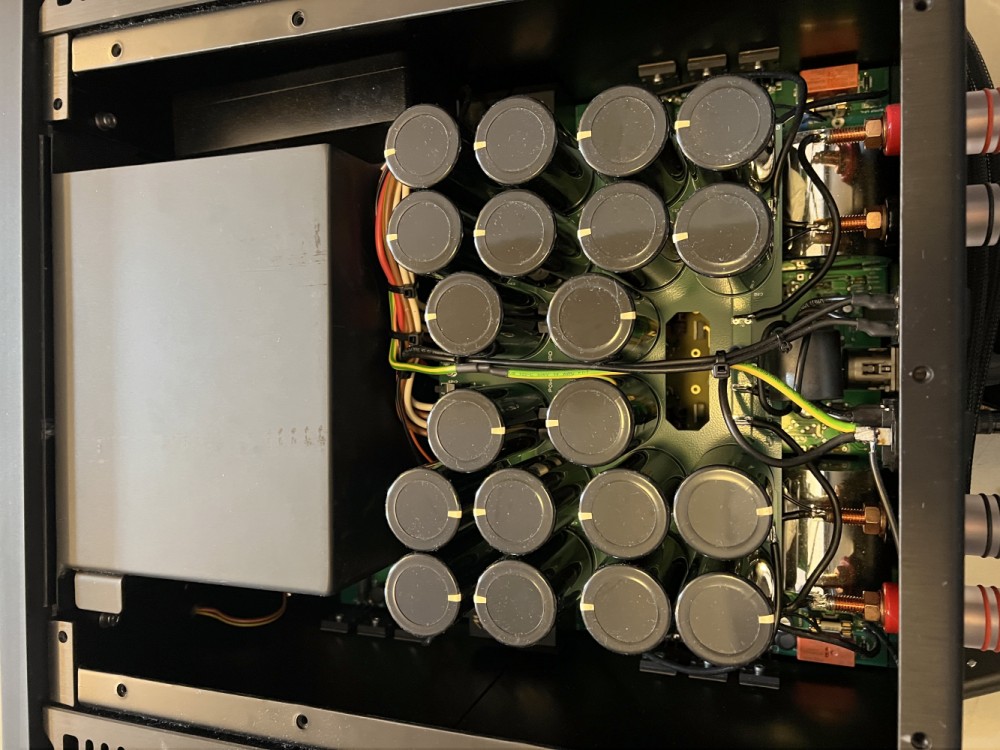

Inside:
Totaldac Amp-1-sublime inside photo

4-channel amplifier

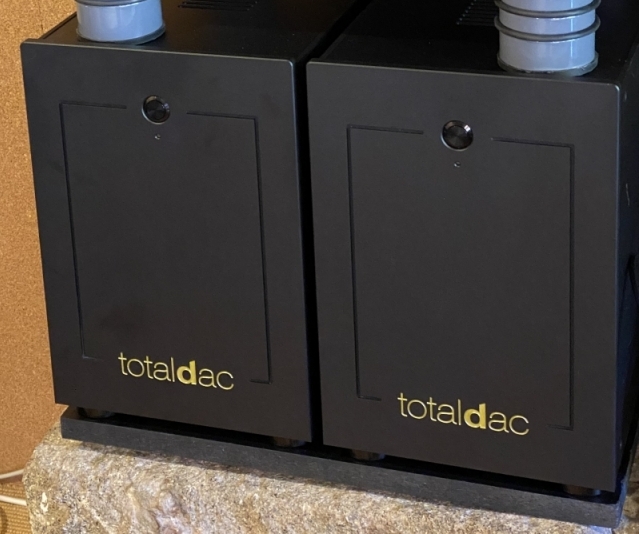

A 4-channel amplifier (8-ch in case of two amplifiers as shown on the photo) has been developped to control a pair of d100 speakers + a pair of subwoofers or for surround speakers.
-150W per channel
-balanced inputs
-26dB gain
-dimensions: L:224mm H:335mm (with feet) D:430mm

Totaldac 8ch amplifier
